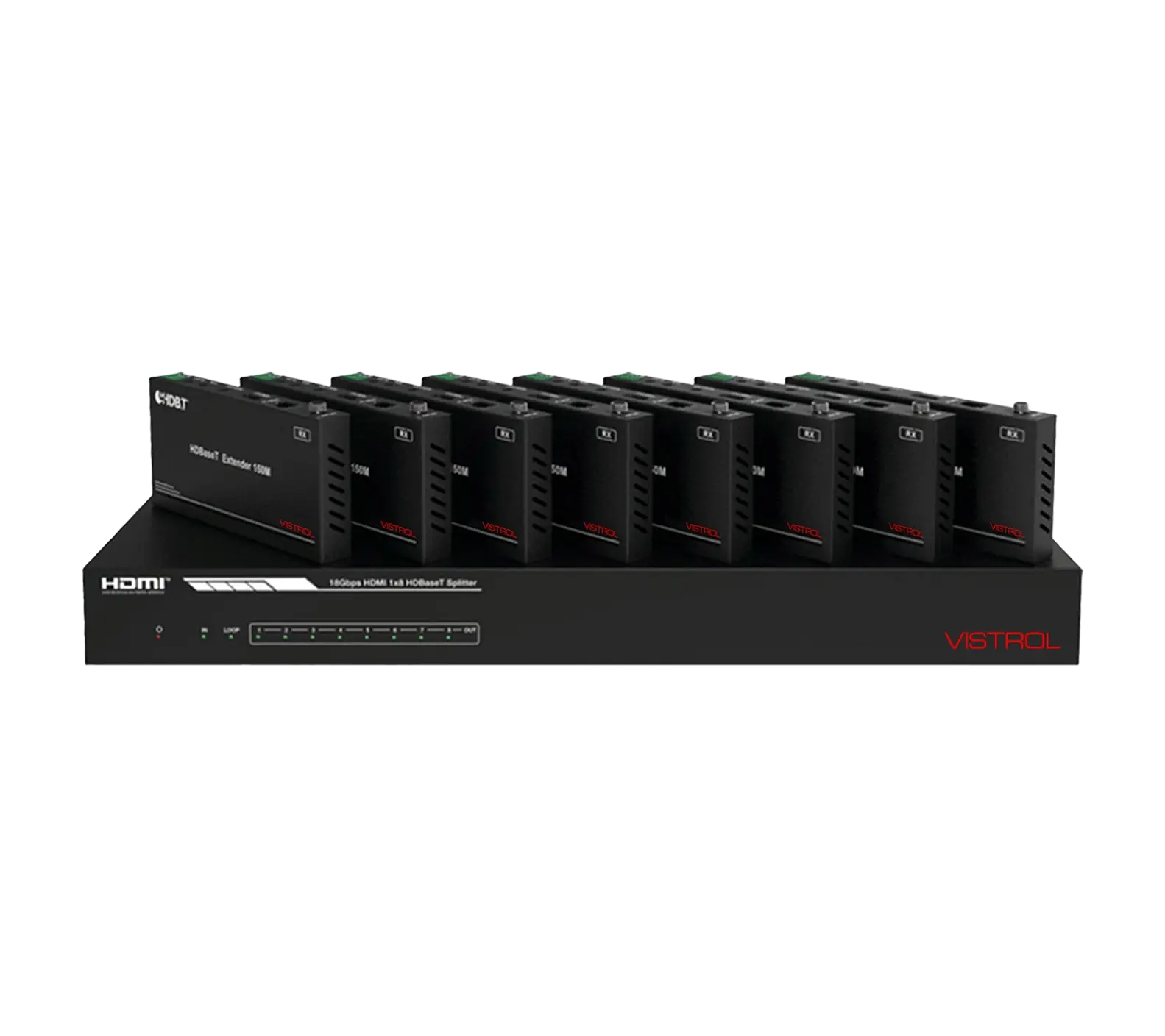

iMX3 4K60 HDMI 1:8 HDBT Splitter
The iMX3-TG-DA8-4KH-HDBT100M 18Gbps HDMI 1x8 HDBT Splitter can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.
Features
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz 4:4:4
- Support HDR, HDR10+, HLG and Dolby vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 4 HDBT outputs
- IR, RS-232 routed to HDBT output
- Advanced EDID management
- Support one-way POC function (only from transmitter to receiver)
- Compact design for easy and flexible installation
Model Name iMX3-TG-DA8-4KH-HDBT100M HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 Color Depth 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 HDR Support HDR, HDR10+, HLG, Dolby vision HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X Coaxial Audio Formats PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 Analog Audio Formats PCM 2.0CH Input 1 x HDMI Type A (19-pin female) Output 1 x HDMI Type A (19-pin female) 4x HDBT OUT (RJ45), 1 x Coaxial Audio OUT (RCA)
1 x L/R Audio OUT (5-pin phoenix connector)Control 1 x RS-232 (3-pin phoenix connector) 1 x EDID DIP switch (5-pin)
1 x IR IN (3.5mm Stereo Mini-jack) 1 x IR OUT (3.5mm Stereo Mini jack)Housing Metal Enclosure Silkscreen Color Black Dimensions (WxDxH) Transmitter: 440mm (W) x 130mm (D) x 44mm (H)
Receiver: 140mm (W) x 65mm (D) x 18mm (H)Weight Transmitter: 1.62kg,
Receiver: 246gPower Supply Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A(US/EU standards, CE/FCC/UL certified) Power Consumption 72W Operating Temperature 0°C ~ 40°C Storage Temperature -20°C ~ 60°C Relative Humidity 20~90% RH (non-condensing)
